產品特點
? 通過拆卸法蘭，可以快速更換內部濾芯，消除雜質；
? 采用100目不銹鋼濾網，有效過濾系統中的固體雜質；
? 濾桿采用嫁接方式，可以大大減小更換濾芯所需要的空間；
? 可以使用任何氟利昂制冷劑；
? 筒體與端蓋接管口采用外翻遍結構，焊接面大，使焊接強度更好。
適用工況
? 適用制冷劑：R410A、R32、R134a、R404A、R507、R407C、R22等,R290制冷劑下訂單前請書面確認
? 最大工作壓力： 3.4MPa；
? 介質溫度：-40℃ ~ 80℃；
? 環境溫度：-40℃ ~55℃；
? 相對濕度： 95%以下
可換芯式干燥過濾器分類
序號 | 容積系列編號 | 容積（in3） |
1 | 48 | 48 |
2 | 96 | 96 |
3 | 144 | 144 |
4 | 192 | 192 |
5 | 300 | 300 |
6 | 400 | 400 |
序號 | 接口系列編號 | 接口尺寸（in） |
1 | 5 | 5/8 |
2 | 7 | 7/8 |
3 | 9 | 1-1/8 |
4 | 11 | 1-3/8 |
5 | 13 | 1-5/8 |
6 | 17 | 2-1/8 |
7 | 21 | 2-5/8 |
8 | 24 | 3 |
9 | 25 | 3-1/8 |
DT系列可換芯式干燥過濾器技術參數

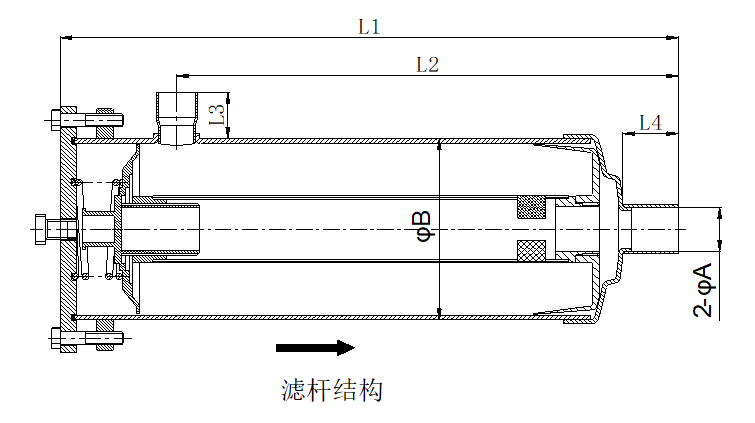

濾桿結構 | 接口尺寸ΦA | L1 | L2 | L3 | L4 | ΦB | 濾芯 數量 | 流體制冷量（KW） | ||||||
型號 | 訂貨代碼 | in | mm | mm | mm | mm | mm | mm | ||||||
R-22 | R134a | R407C | R404A/R507 | R502 | ||||||||||
DT485 | DT300058000300 | 5/8 | 16 | 226 | 150 | 20 | 26 | 114 | 1 | 73.5 | 66.5 | 70.5 | 49.0 | 45.5 |
DT487 | DT300058000100 | 7/8 | 22.3 | 227 | 150 | 22 | 27 | 114 | 1 | 133.0 | 122.5 | 129.5 | 87.5 | 84.0 |
DT489 | DT300058000200 | 1-1/8 | 28.6 | 227 | 150 | 24 | 26 | 114 | 1 | 185.5 | 168.0 | 178.5 | 122.5 | 119.0 |
DT4811 | DT300058000700 | 1-3/8 | 35 | 232 | 156 | 28 | 32 | 114 | 1 | 213.5 | 196.0 | 206.5 | 140.0 | 136.5 |
DT4821 | DT300017000100 | 2-5/8 | 67 | 242 | 148 | 50 | 54 | 114 | 1 | 297.5 | 273.0 | 224.0 | 196.0 | 192.5 |
DT967 | DT300061000500 | 7/8 | 22.3 | 373 | 297 | 22 | 27 | 114 | 2 | 143.5 | 129.5 | 140.027 | 94.5 | 91.0 |
DT969 | DT300061000200 | 1-1/8 | 28.6 | 373 | 297 | 24 | 26 | 114 | 2 | 220.5 | 203.0 | 213.5 | 147.0 | 140.0 |
DT9611 | DT300061000100 | 1-3/8 | 35 | 378 | 302 | 28 | 32 | 114 | 2 | 276.5 | 252.0 | 269.5 | 182.0 | 178.5 |
DT9613 | DT300061000800 | 1-5/8 | 42 | 375 | 300 | 25 | 32 | 114 | 2 | 297.5 | 273.0 | 290.5 | 196.0 | 192.5 |
DT9625 | DT300054000500 | 3-1/8 | 80 | 388 | 290 | 42 | 52 | 114 | 2 | 297.5 | 273.0 | 224.0 | 196.0 | 192.5 |
DT1449 | DT300033000200 | 1-1/8 | 28.6 | 516 | 440 | 24 | 26 | 114 | 3 | 213.5 | 196.0 | 206.5 | 140.0 | 136.5 |
DT14411 | DT300034000700 | 1-3/8 | 35 | 521 | 445 | 28 | 32 | 114 | 3 | 308.0 | 283.5 | 301.0 | 203.0 | 199.5 |
DT14413 | DT300062000100 | 1-5/8 | 42 | 521 | 445 | 25 | 32 | 114 | 3 | 339.5 | 311.5 | 332.5 | 224.0 | 220.5 |
DT14417 | DT300036000200 | 2-1/8 | 54 | 524 | 445 | 32 | 38 | 114 | 3 | 392.0 | 360.5 | 381.5 | 259.0 | 252.0 |
DT14424 | DT300055000300 | 3 | 76.3 | 530 | 435 | 38 | 58 | 114 | 3 | 392.0 | 360.5 | 294.0 | 259.0 | 252.0 |
DT19211 | DT300044000200 | 1-3/8 | 35 | 671 | 595 | 28 | 32 | 114 | 4 | 329.0 | 301.0 | 322.0 | 217.0 | 213.5 |
DT19213 | DT300063000100 | 1-5/8 | 42 | 671 | 595 | 25 | 32 | 114 | 4 | 360.5 | 332.5 | 353.5 | 238.0 | 231.0 |
DT19217 | DT300063000300 | 2-1/8 | 54 | 677 | 593 | 32 | 38 | 114 | 4 | 402.5 | 371.0 | 392.0 | 266.0 | 259.0 |
DT19221 | DT300047000200 | 2-5/8 | 67 | 667 | 593 | 37 | 43 | 114 | 4 | 402.0 | 371.0 | 304.5 | 266.0 | 259.0 |
DT30013 | DT360015000001 | 1-5/8 | 42 | 625 | 504 | 25 | 32 | 152 | 3 | 266.0 | 245.0 | 259.0 | 175.0 | 171.5 |
DT30017 | DT300049000200 | 2-1/8 | 54 | 628 | 507 | 32 | 38 | 152 | 3 | 322.0 | 294.0 | 315.0 | 213.5 | 206.5 |
DT30021 | DT300050000200 | 2-5/8 | 67 | 640 | 522 | 52 | 54 | 152 | 3 | 357.0 | 329.0 | 276.0 | 248.5 | 241.5 |
DT30024 | DT360007000004 | 3 | 76.3 | 637 | 513 | 48 | 50 | 152 | 3 | 392.0 | 364.0 | 311.5 | 283.5 | 276.5 |
DT40017 | DT300052000200 | 2-1/8 | 54 | 760 | 668 | 32 | 38 | 152 | 4 | 339.5 | 311.5 | 332.5 | 224.0 | 220.5 |
DT40021 | DT300056000300 | 2-5/8 | 67 | 798 | 677 | 50 | 54 | 152 | 4 | 385.0 | 353.5 | 374.5 | 255.5 | 248.5 |
DT40025 | DT300048000100 | 3-1/8 | 80 | 800 | 677 | 48 | 50 | 152 | 4 | 392.0 | 364.0 | 311.5 | 283.5 | 276.5 |

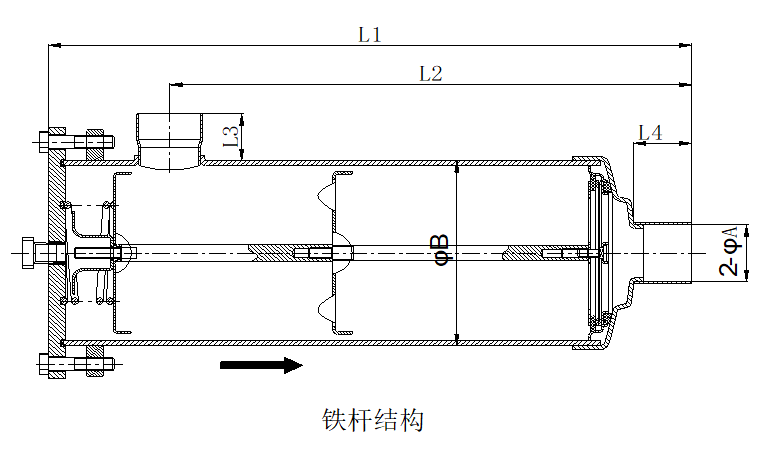

鐵桿結構 | 接口尺寸ΦA | L1 | L2 | L3 | L4 | ΦB | 濾芯 數量 | 流體制冷量（kW） | ||||||
型號 | 訂貨代碼 | in | mm | mm | mm | mm | mm | mm | ||||||
R-22 | R134a | R407C | R404A/R507 | R502 | ||||||||||
DT485S | DT300011000300 | 5/8 | 16 | 226 | 150 | 20 | 26 | 114 | 1 | 73.5 | 66.5 | 70.5 | 49.0 | 45.5 |
DT487S | DT300012000200 | 7/8 | 22.3 | 227 | 150 | 22 | 27 | 114 | 1 | 133.0 | 122.5 | 129.5 | 87.5 | 84.0 |
DT489S | DT300013000200 | 1-1/8 | 28.6 | 227 | 150 | 24 | 26 | 114 | 1 | 185.5 | 168.0 | 178.5 | 122.5 | 119.0 |
DT4811S | DT300014000200 | 1-3/8 | 35 | 232 | 156 | 28 | 32 | 114 | 1 | 213.5 | 196.0 | 206.5 | 140.0 | 136.5 |
DT4821S | DT300017000200 | 2-5/8 | 67 | 242 | 148 | 50 | 54 | 114 | 1 | 297.5 | 273.0 | 224.0 | 196.0 | 192.5 |
DT967S | DT300022000200 | 7/8 | 22.3 | 373 | 297 | 22 | 27 | 114 | 2 | 143.5 | 129.5 | 140.027 | 94.5 | 91.0 |
DT969S | DT300023000200 | 1-1/8 | 28.6 | 373 | 297 | 24 | 26 | 114 | 2 | 220.5 | 203.0 | 213.5 | 147.0 | 140.0 |
DT9611S | DT300025000200 | 1-3/8 | 35 | 378 | 302 | 28 | 32 | 114 | 2 | 276.5 | 252.0 | 269.5 | 182.0 | 178.5 |
DT9613S | DT300024000300 | 1-5/8 | 42 | 375 | 300 | 25 | 32 | 114 | 2 | 297.5 | 273.0 | 290.5 | 196.0 | 192.5 |
DT9625S | DT300054000400 | 3-1/8 | 80 | 388 | 290 | 42 | 52 | 114 | 2 | 297.5 | 273.0 | 224.0 | 196.0 | 192.5 |
DT1449S | DT300033000400 | 1-1/8 | 28.6 | 516 | 440 | 24 | 26 | 114 | 3 | 213.5 | 196.0 | 206.5 | 140.0 | 136.5 |
DT14411S | DT300034000800 | 1-3/8 | 35 | 521 | 445 | 28 | 32 | 114 | 3 | 308.0 | 283.5 | 301.0 | 203.0 | 199.5 |
DT14413S | DT300035000300 | 1-5/8 | 42 | 521 | 445 | 25 | 32 | 114 | 3 | 339.5 | 311.5 | 332.5 | 224.0 | 220.5 |
DT14417S | DT300036000300 | 2-1/8 | 54 | 524 | 445 | 32 | 38 | 114 | 3 | 392.0 | 360.5 | 381.5 | 259.0 | 252.0 |
DT14424S | DT300055000400 | 3 | 76.3 | 530 | 435 | 38 | 58 | 114 | 3 | 392.0 | 360.5 | 294.0 | 259.0 | 252.0 |
DT19211S | DT300044000400 | 1-3/8 | 35 | 671 | 595 | 28 | 32 | 114 | 4 | 329.0 | 301.0 | 322.0 | 217.0 | 213.5 |
DT19213S | DT300045000300 | 1-5/8 | 42 | 671 | 595 | 25 | 32 | 114 | 4 | 360.5 | 332.5 | 353.5 | 238.0 | 231.0 |
DT19217S | DT300046000500 | 2-1/8 | 54 | 677 | 593 | 32 | 38 | 114 | 4 | 402.5 | 371.0 | 392.0 | 266.0 | 259.0 |
DT19221S | DT300047000300 | 2-5/8 | 67 | 667 | 593 | 37 | 43 | 114 | 4 | 402.0 | 371.0 | 304.5 | 266.0 | 259.0 |
